Impianti Rigenerazione Plastica Alimentazione Forzata

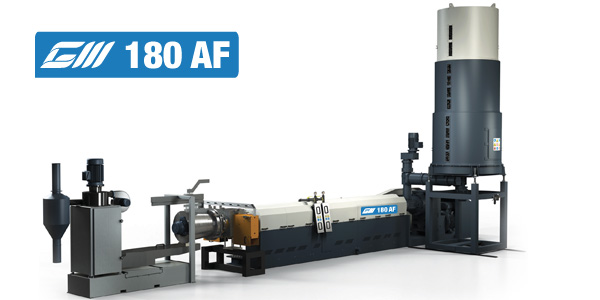

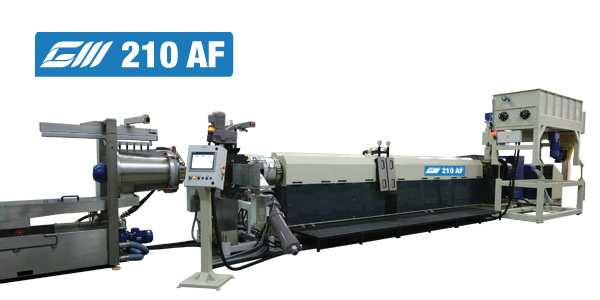

Plastic recycling lines with Forced Feed AF

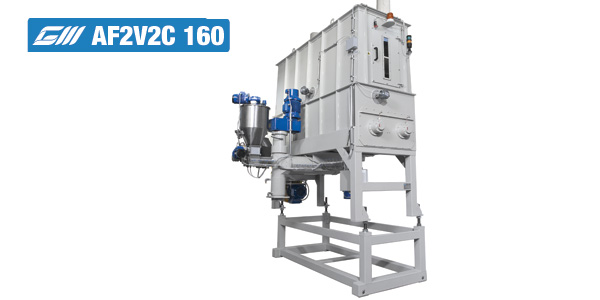

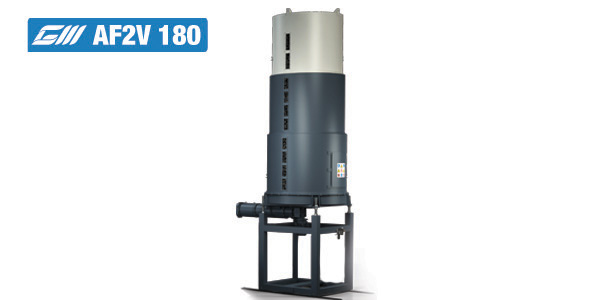

The conventional regeneration lines are ideal for the recycling of plastics that foresee the use of a granulator. It can be also equipped with our FORCE FEED system complete with storage silo, single or dual auger configuration for ground rigid materials, film and foam flake. This type of line is available in different models depending on the production capacity.

Every line can be customized upon request with additional components to satisfy the customer’s requirements.

The typical composition of the line:

force feeder
extruder
filter
water ring pelletizer TDA or underwater pelletizer TI

TIPO DI LINEA	ENERGY CONSUMPTION (KWh/Kg)	PRODUCTION CAPACITY (Kg/h)*
GM65	0,23 ÷ 0,28	180-200
GM90	0,23 ÷ 0,28	250-300
GM105	0,23 ÷ 0,28	400-500
GM125	0,23 ÷ 0,28	550-650
GM160	0,23 ÷ 0,28	900-1100
GM180	0,23 ÷ 0,28	1000-1500
GM210	0,23 ÷ 0,28	1100-1900

* The capacity refers to LDPE (excluding the granulator), and can vary depending on the density of the material, degree of pollution, print and humidity percentage
